Filtre og udskillere

JKF has a large and extensive filter programme within bag and cartridge filters

Our filter programme ranges from extraction from a single machine using a portable vacuum cleaner to traditional modular filter solutions and advanced filter solutions with round, welded filters and SuperBlower filters.

Filtre

Cykloner

Roterende ventiler

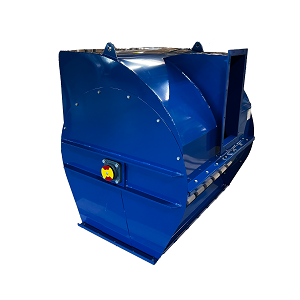

Separator

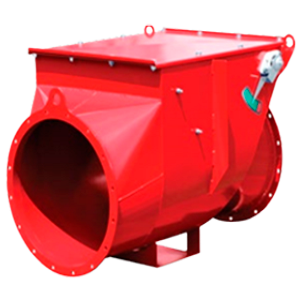

Ventiler til eksplosionskanaler

JKF har et stort og bredt filterprogram i pose- og patronfiltre

Vores program kan opfylde behovet for udsug fra en enkelt maskine med en transportabel støvsuger til traditionelle modulfilterløsninger og avancerede filterløsninger med runde, svejste filtre og SuperBlower-filtre.

Et filter består grundlæggende af en indløbsdel, en filterdel, et rensesystem og en udmadningsdel.

JKF's filtre er særdeles effektive i en lang række brancher, hvor der opstår tørt støv under produktionen, og har til formål at:

fjerne uønskede forureninger som fx partikler, støv, lugt, røg eller gasarter fra proces- og/eller arbejdszoner, inden de spredes.
skabe balance mellem den indblæste og den udsugede volumenstrøm.

Udskilning af partikler ved filtrering afhænger primært af fysiske og mekaniske påvirkninger. For alle rensemetoderne gælder, at udskilningseffektiviteten afhænger af partikelstørrelsen, hvor udskilningsgraden for systemerne øges med stigende partikelstørrelse.

Sundhedsmæssigt er de mindste partikler langt de farligste, da de via indåndingsluften kan føres ned i luftvejene.

Surface Treatment:

State-of-the-art automatic 3-zone powder coating plant for high-quality, uniform finishes.
Powder coating benefits:
- Impact and scratch-resistant surfaces
- High material usage – no evaporation
- Environmentally friendly – no solvents
Standard Surface Treatment:
- Filters, cyclones, fans, rotary valves, diverters: 3-step iron phosphate finish, powder-coated with primer and top coat paint (Interpon D1036 Gloss RAL 5010).
- Ducts and other parts for duct systems: 3-step iron phosphate finish, powder-coated with top coat paint (Interpon D1036 Gloss RAL 7032).
Customised Surface Treatment:
- Sandblasting SA≥2.5/Ra 6-10 μm
- Powder-coated with primer (60-120 μm) and top coat paint (70-120 μm) in various RAL colours.
Expected Service Life: Up to 15 years in corrosive environments.

Quality: Certified according to DS/EN ISO 9001:2015 for product development, production, and order management.

Working Environment: Certified according to DS/EN ISO 45001:2018 for health and safety management.

Environment: Certified according to DS/EN ISO 14001:2015 for environmental management.

Filter Inlets:

Tangential Inlet: Common type where contaminated air is passed tangentially to the cylindrical filter body, using centrifugal force to expel particles.
Air Supply Chamber: Air is passed into a settling chamber, reducing velocity and allowing particles to drop due to gravity.
Side Inlet, Settling Chamber: Contaminated air passes into a section without filter bags, leading particles to the bottom and extending cleaning intervals.
Side Inlet, Partial Downflow: Air passes into the filter, hitting a perforated plate to separate particles and reduce energy for filter bag cleaning.

Explore a solution

Proven products

Garanteret ydeevne

Carefully engineered products
